Product Description

The Simulated Loudspeaker is a passive analog device that requires connection to a simulated audio device such as the ASIP SINCGARS Panel (part number 10550). The simulated device connects to the headset connector on the radio device. Audio from the radio device is amplified and sent to the speaker. A volume control and power switch are provided to control the speaker audio. One U-283 connector is available on the front of the speaker to allow an H-250 handset to be used to transmit on the connected radio.

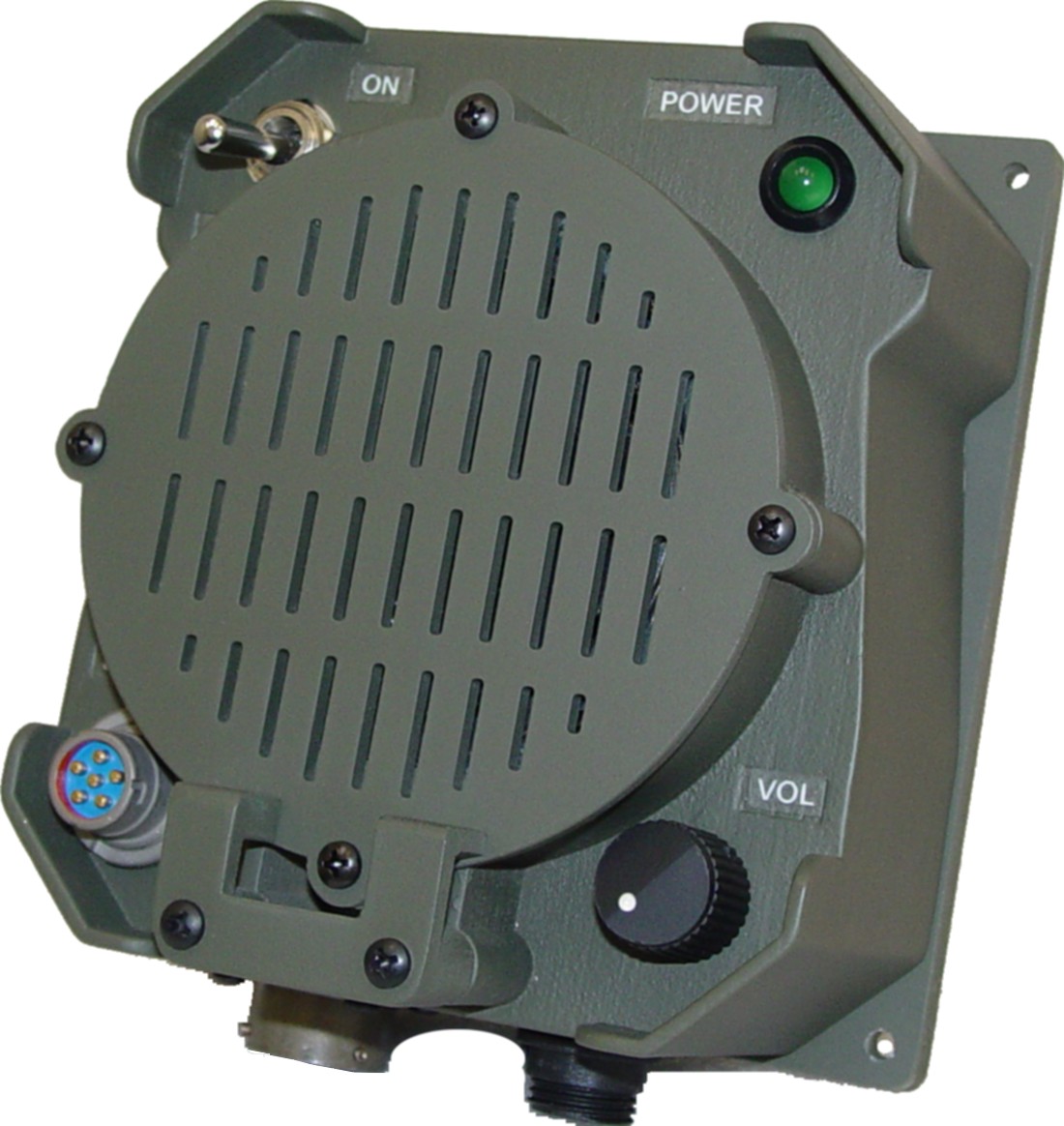

The loudspeaker is built around a 3D-printed housing with very similar size to the tactical component. It is equipped with a U-283 connector on the front of the unit for an H-250 handset. It has a power switch for activating the speaker and a power indicator. A volume knob is located on the front panel to adjust the output level of the speaker.
